Brand Name : Hurakan
Model Number : Kubota
Place of Origin : China
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1000+
Delivery Time : About 7 days
Part Number : 49177-03242 1J773-17013
Applies to : Kubota
Turbocharged Model : TD04L4 TD04L4-09TK3-5.0
Engine Model : V3307-DI-TE3-Q V3307-DI-T-E3B Stage3B
PART NO : 49177-03231 49177-03232 49177-03240 49177-03241 49177-03242 49177-03243
More product numbers : 1J770-17010 1J770-17011 1J770-17012 1J77017010 1J77017011 1J77017012 1J773-17010 1J773-17011 1J773-17012 1J773-17 013 1J773-17014 1J77317010 1J77317011 1J77317012 1J77317013 1J77317014 436- 1920 4361920
Warranty : 6 months
Fuel Type : diesel fuel
Specification
Category | Material | |
Shell | ZL101A | |
YL104 | ||
Volute | QT450 | |
Medium silicon-molybdenum heat-resistant ductile iron | ||
D-5S High Nickel | ||
Rotor shaft assembly | Steel wheels | K418 |
K213 | ||
impeller | C355-T6 | |
7075(Milling impeller) | ||
Intermediates | HT250 | |
Sealing ring | W6M5Cr4V2(High Speed Steel) | |
3Cr13 | ||
Thrust bearing | CW713R | |
Floating bearings | CW713R | |
QSn7-7-3 | ||
screw | 45# | |
304 |
Product Image
Packing & Delivery
Company Profile
![]() |

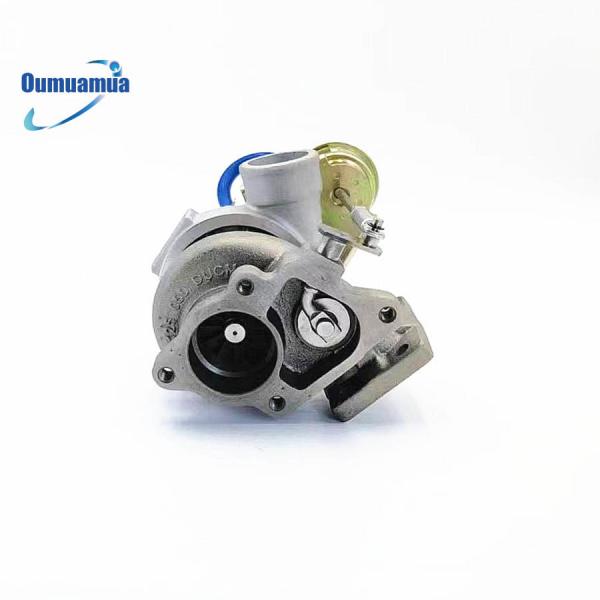

New factory direct sale turbocharger 49177-03242 1J773-17013 suitable for Kubota TD04L4-09TK3 contra angle Images |
